TM_Iconc2.png (Technologia Meccanica Logo)The J-20 Fluid Jet Micronizer series suitable for R&D and lab works

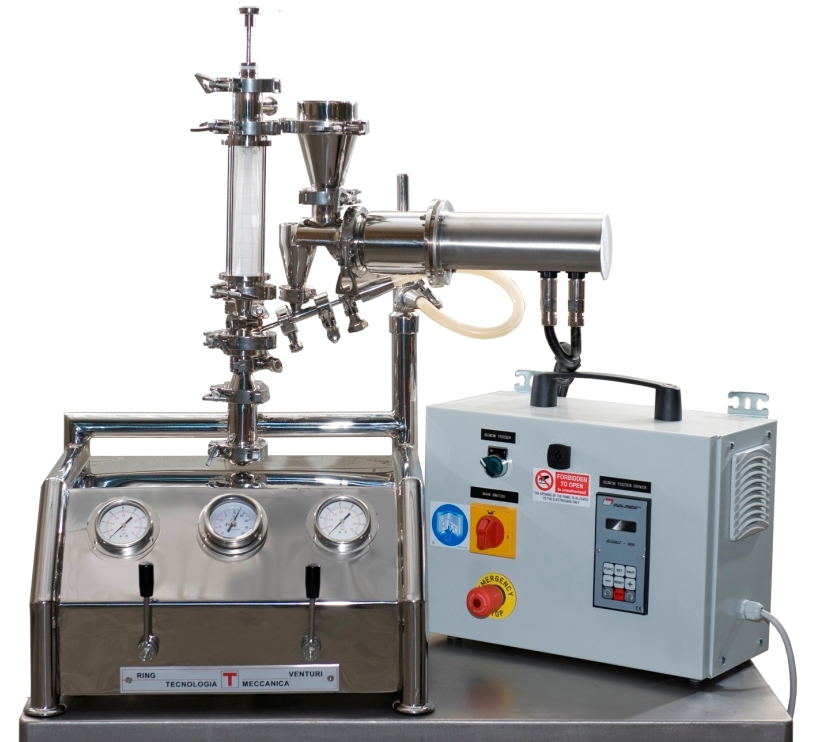

J-20, J-25 & J-30 Series


Fluid jet micronizers designed for 'R & D'

Jet mill systems are the ideal choice for micronising pharmaceutical powders down to 1 micron in size.

Especially developed for pharmaceutical applications, the J-20, J-25 & J-30 Fluid Jet Micronizers are designed for laboratory and R & D works.


Based on the intuitive and highly efficient jet milling technology developed by Tecnologica Meccanica (Italy), the J-20, J-25 & J-30 series of Fluid Jet Micronizers are capable of yielding extremely narrow tight particle size distribution (PSD) curves of d100<5µm (100% below 5µm) and d99<3µm (99% below 3µm) or even less depending on the nature of the product.

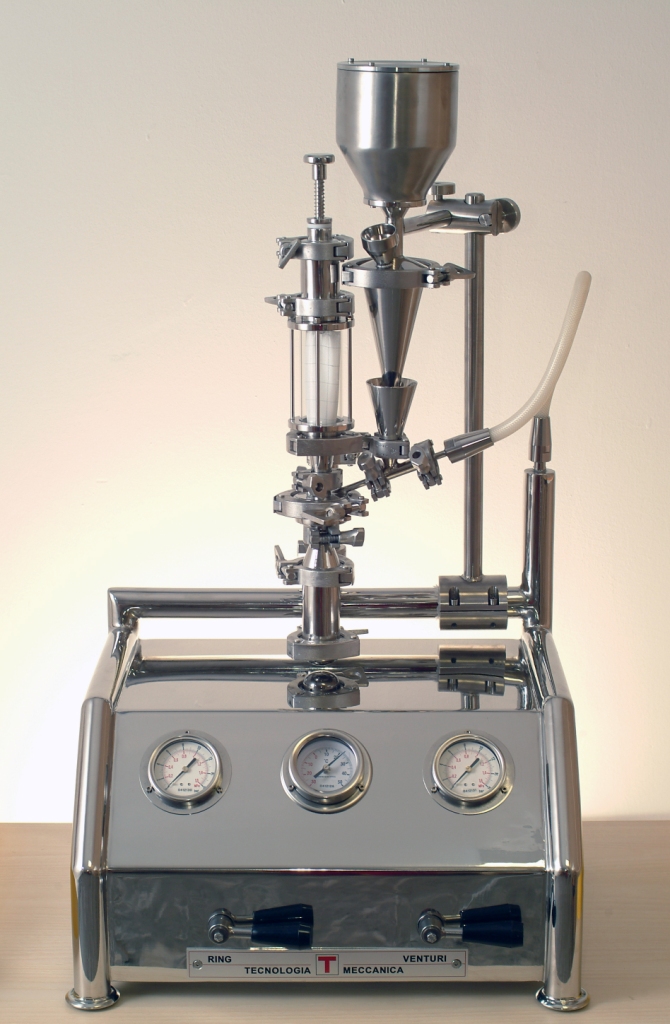

Profile

The J-20 'laboratory' fluid jet micronizer has been designed on the basis of cGMP principles to mainly work with several types of pharmaceutical and food products.  The plant is not foreseen to work with flammable products or products that can generate explosive atmospheres.

The J-20 works at a constant temperature (endothermic) and independently with just a nitrogen bottle.  It can be installed in ambient conditions without explosion risks (non-classified zones).  The unit is also built to be readily assembled/disassembled and easily cleaned with most common detergents and alcohols.  Furthermore, it offers a very high degree of resistance to powder penetration.

Thanks to its modular design concept, the standard J-20 can be upgraded, on request, to the J-25 or J-30 micronizing chambers with very few extra components.

These enhanced versions have wider micronizing characteristics.  With these “bigger” milling chambers it is possible to obtain narrower Particle Size Distribution (PSD), or more productivity with the same lab equipment.

Features

•Processing batch sizes ranging from 0.2 to 100.0 g
•Minimum batch of 50 mg in the 'Milligram Kit' configuration
•Productivity from 0.50 to 100.00 g/hour
•One single collecting point
•Scalability of the process to bigger micronizers
•Metal contamination below 1 PPM (particles per million)

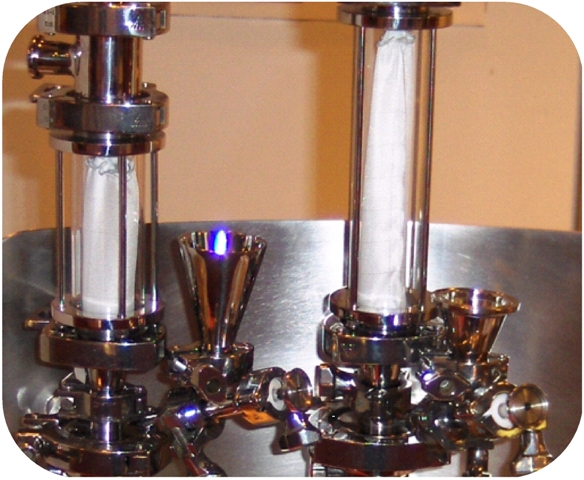

•Two different filter sleeve sizes

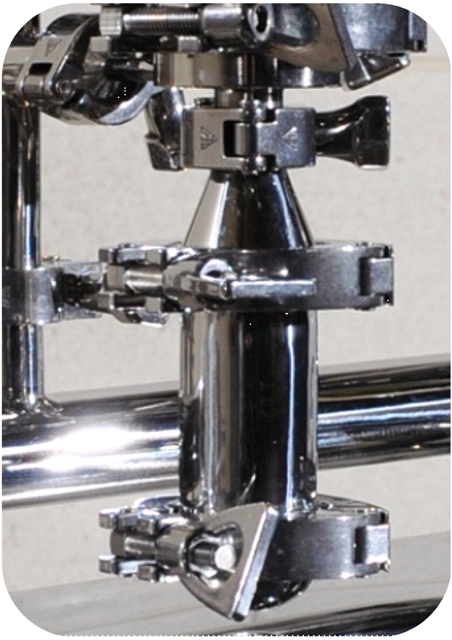

•Two different collecting bin sizes
•Quick and easy assembling and disassembling of the system with a limited number of clamped components
•Simplicity of the whole unit
•Miniaturized dimensions
•Equipped with a skid-mounted 'Process Gas Generator' for feeding treated gas to the jet mill
•The J-20 is manufactured in AISI type 316L (EN 1.4404) stainless steel or in Hastelloy mirror polished to Ra 0.25 micron

Benefits

Ability to micronize very small batches/samples from 0.2-0.3 grams (even 50 mg in the 'Milligram Kit' configuration) with low product loss to extremely narrow Particle Size Distribution (PSD) D99<3 micrometers.  This is the main strength/innovation of the J-20

Pharmaceutical laboratories all over the world are concentrating their research efforts on new molecules and on new, very often, expensive products, of which only limited quantities might be available.  This mill allows researchers to carry out numerous experiments with their limited or costly product(s) instead of just one or two trials, and with very low product loss.

Until recently, researchers had to settle for R&D fluid energy jet mills able to micronize batches starting from 3 or 4 grams, but laboratories don’t always have 3 or 4 grams at their disposal just to make trials.

Technical Specifications

Milling Chamber: J-20
  •Process gas at 7 bar=0.08 m3/min (2.82 CFM)
  •Process gas at 12 bar=0.20 m3/min (7.06 CFM)
  •Estimated capacity=from 0.50 to 100.00 g/hour

Milling Chamber: J-25
  •Process gas at 7 bar=0.14 m3/min (4.94 CFM)
  •Process gas at 12 bar=0.24 m3/min (8.47 CFM)
  •Estimated capacity=from 5.00 to 300.00 g/hour

Milling Chamber: J-30
  •Process gas at 7 bar=0.17 m3/min (6.00 CFM)
  •Process gas at 12 bar=0.28 m3/min (9.89 CFM)
  •Estimated capacity=from 5.00 to 600.00 g/hour

Options
Numerous configurations are available and can be offered to tailor our micronizers to your specific application(s). Try your custom version, and our engineering team will work with you in order to develop your personal system.

The following options are already available:

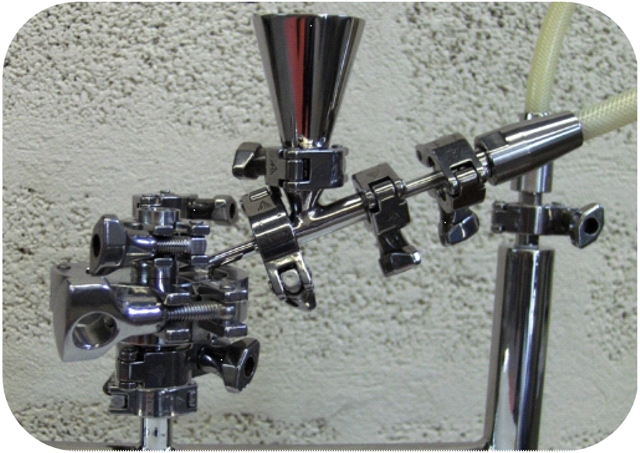

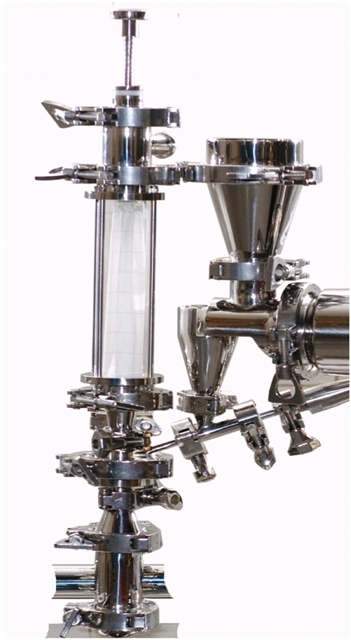

J-20 with a 'milligram kit'

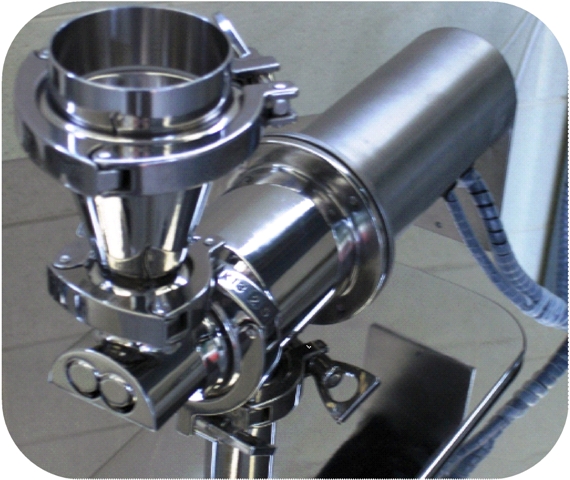

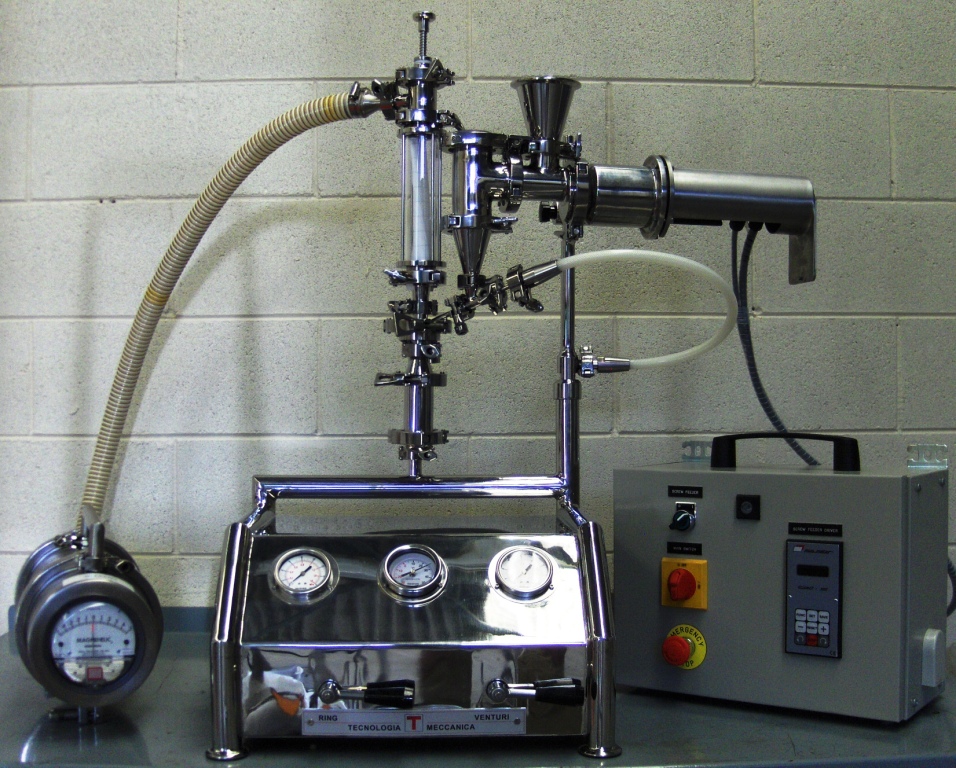

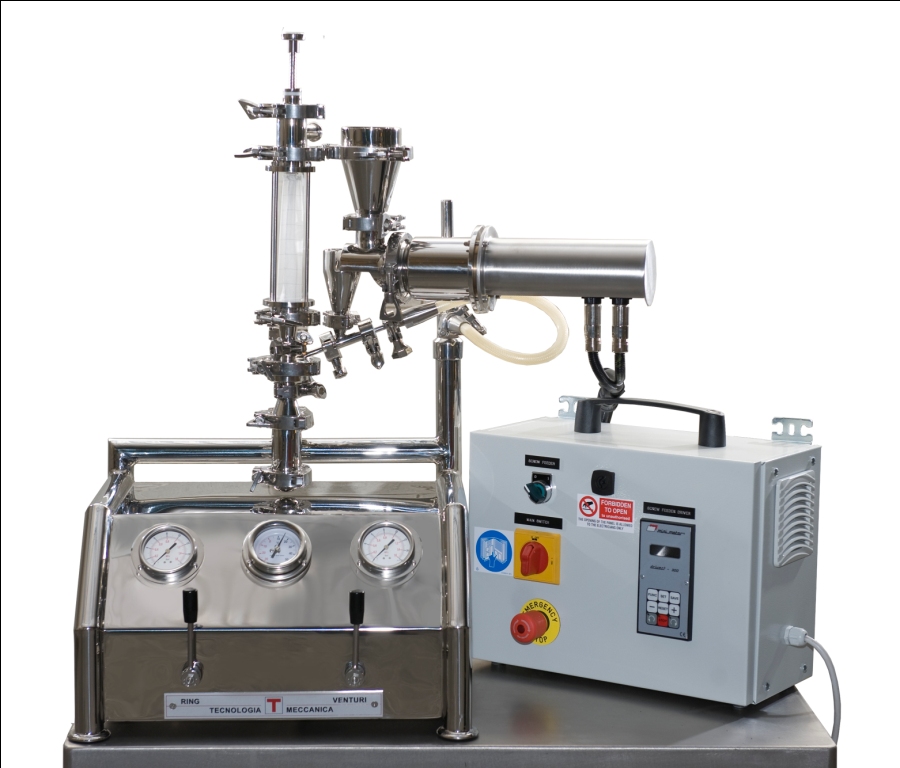

•Single and double screw feeders

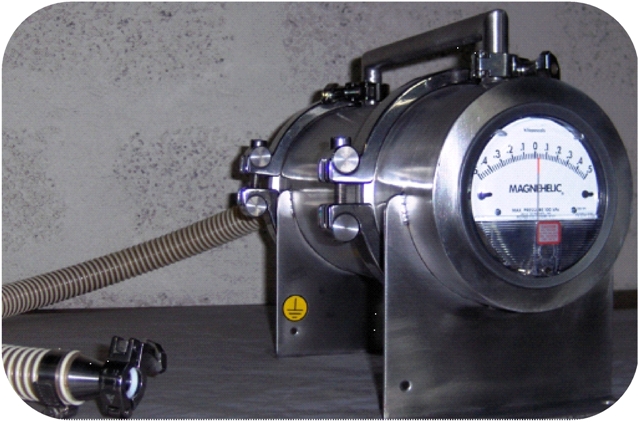

•Low Emission version fitted with Hepa filter (J-20-LE)
•Automatic shaking system

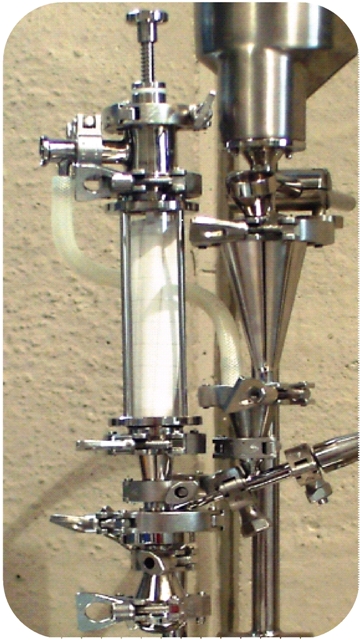

•Balance line
•Cold/cryogenic process gas version (J-20-CRYO)
J-20, J-25, or J-30 milling chambers
•Explosion proof version
•Totally contained solution in a glove box

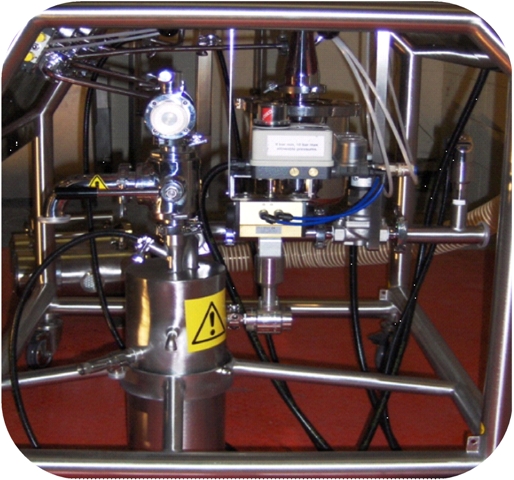

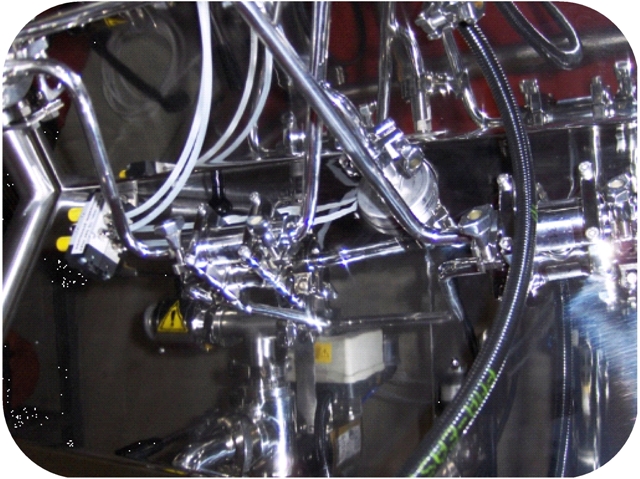

Gallery
See it in Action!
Click to download in FLV format (3.31MB)

Find out more about Micronization Technology and its advantages to your applications below:

What is Micronization Technology?

Micronization Technology is a term that refers to the complex process of producing highly-refined powders by properly reducing the size of ordinary powder particles to dimensions below 10 micrometers.

Generally, this is a complicated and rather expensive process with wide applications in various fields, particularly in the pharmaceutical industry where the production of certain drugs, such as inhalers, requires the correct Particle Size Distribution (PSD) for inhaled APIs.

How Does Micronization Technology Work?

Process powder is fed tangentially at subsonic speeds (approximately 50 m/s) into the flat cylindrical milling chamber of the the fluid jet micronizer through a Venturi system using pressurized air or nitrogen. Once inside the milling chamber, powder particles are then accelerated to supersonic speeds (300 m/s) in a spiral movement by a series of jets around the perimeter of the micronizer.

Click to download in FLV format (565.31kB)

The micronizing effect occurs when the slower incoming powder particles and the faster particles in the spiral path collide.  While centrifugal force retains the larger particles at the periphery of the milling chamber, the smaller particles exit with the exhaust gas from the center of the chamber.

Watch the micronization effect in a jet mill below:

Click to download in FLV format (1.06MB)

This process works at a constant temperature (endothermic) and independently with the lowest consumption of process gas of similarly sized units available on the market.

The Particle Size Distribution (PSD) is controlled by adjusting two main parameters:
PRESSURE: The energy used to micronize; increased pressure increases the micronization effect.
FEED RATE: The concentration of product fed into the milling chamber; the greater the feed rate, the less the micronization effect. This is due to the fact that particles must have space to achieve proper acceleration before collision occurs.

The Fluid Jet Micronizer Advantages

• Enhanced hi-tech milling chamber geometry
• Nozzles designed for laminar jet streams and available with different grinding angles
• Optimized static classifier
• Elimination of the "caking" of sticky powders
• Narrow Gauss curve (particle size distribution)
• Lowest gas consumption on the market
• Elimination of the "blowback" phenomenon
• Optimised gas-solid separation and unique collecting point with yields close to 100%
• Balance and control of pressures within the whole micronisation system
• Reduction of contact surfaces – rapid cleaning and lower product loss
• Easy cleaning and validation operations
• Sterilizing system with hydrogen peroxide solution
• Inexpensive and easy to operate
• Capable of processing products with high solvent content (around 3000 ppm)
• Capable of processing sticky powders that do not flow well

Find Your Fluid Jet Micronizer Solution

Tecnologia Meccanica has over 40 years experience with Micronization Technology. It currently manufactures 10 different sizes of Fluid Jet Micronizers, ranging from a capacity of 0.50 to 1500 kg/h, and a throughput of 300-4000 kgs/hr.

Each size caters for a different requirement, depending on your application. If you are at all unsure or require any help, please do not hesitate to contact us and a technical engineer will be able to assist you.

To browse each solution, simply select your desired model from the available Fluid Jet Mill series list below:

J-20, J-25 & J-30 Series The capacity is from 0.50 g/hour to 100.00 g/hour, suitable for lab and R&D applications. More info

J-40, J-50 & J-70 Series The capacity is from 0.05 to 7.00 kg/hour, suitable for pilot, or small production applications. More info

J-100, J-125 & J-150 Series The capacity is from 0.50 to 30.00 kg/hour, suitable for small production applications. More info

J-200, J-300 & J-400 Series The capacity is from 0.50 to 350.00 kg/hour, suitable for medium to large production applications. More info

J-500, J-600, J-750 & J-900 Series The capacity is from 0.50 to 1500.00 kg/hour, suitable for large production applications. Contact us for more information.
