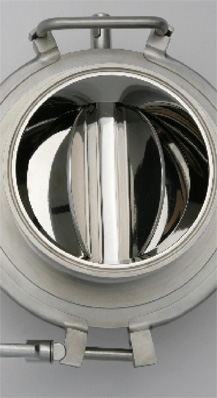

Rotovalve HD



Heavy Duty Rotary Valves

The Rotovalve HD is the solution offered by Hanningfield to dose powder and granules in the process phase.

Due to the spherical shape of the body and the ability to incorporate various vane and compartment configurations appropriate to the application, the Rotovalve HD provides accurate and sanitary dosing for pharmaceutical applications.

These important factors make the Rotovalve HD the ideal solution for compression machines, fillers, mills, weighing stations and much more.

The Rotovalve HD is a valve used to feed and dose unbottled products during pharmaceutical processes (powders, granules).  It has a solid shape and is designed to be highly hygenic.





Profile

In comparison to standard rotary valves Rotovalve HD can work also with overpressure or vacuum.  The design and the features of the valve are optimized for applications in food and pharmaceutical fields.

The special clamp that is supplied with the valve (quick open versions) makes it more ergonomic and sterile.

The Rotovalve HD can be actuated by air actuators, pneumatic or electric motors.

The Rotovalve HD is a valve used to feed and dose unbottled products during pharmaceutical processes (powders, granules).  The Rotovalve HD is a valve used to feed and dose unbottled products during pharmaceutical processes (powders, granules).

Features & Benefits
- Easy Clean Hygienic Design
- Modular Construction
- Compact Dimensions
- 316L Stainless Steel Contact Parts
- Optional Pneumatic Actuation
- Various Gasket Material Options
Technical Specifications

- Valve body in stainless steel 1.4404 (AISI 316L) or in advanced plastic FDA approved
- Silicone coated disc, FDA approved (CFR 177.2600)
- Gasket in silicone, EPDM, FKM (Viton®) or PTFE: All elastomers are FDA approved (CFR 177.2600) PTFE bushings
- All Components in stainless steel EN 1.4301 (AISI 304)
- Finish: inside high polish [Ra < 0,1 microns], outside satin [Ra < 0,8 microns]
- Drive: handle or rotary pneumatic actuator

Applications
- Compression machines
- Filters and mixers
- Cell load and whenever there is a need to dose a flow
- Accuracy: +50 gms
- Process Valves Series
Process Valves Series

Sterivalve (Hygienic Butterfly Valves)

rotavalve lightSterisplit (Split Butterfly Valves)

Flexivalve (Flexible Vane Valves)

Rotavalve Light (Light Duty Rotary Valve)

Rotavalve HD (Heavy Duty Rotary Valves)
