Silicone Sleeves



Application of 'Uni-Connect' silicone sleeves in

'Powder Containment'

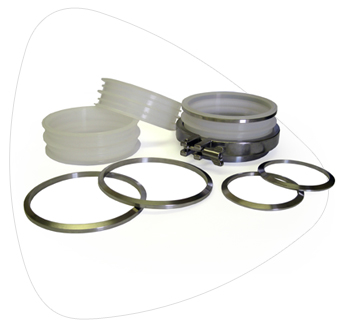

The Uni-Connect silicone connecting sleeve system is ideal for connecting two items of process equipment using Tri-Clover type couplings.

The use of this flexible connector provides a simple and effective method of height adjustment and also compensates for misalignment.

The Uni-Connect is moulded in one piece from FDA compliant silicone rubber. The silicone material complies with FDA 177, 2600 and is translucent.

Profile

Uni-Connect
The Uni-Connect system incorporates the use of Tri-Clover clamps and ferrules to ensure simple integration into any product transfer situation.  Using Tri-Clovers also ensures the transfer piece has a smooth bore avoiding unnecessary ledges or product traps.

The Uni-Connect system is a simple, cost effective method for joining two items of process equipment where a temporary dust-tight connection is required.  The use of the flexible connection is ideal for material transfer and can be used to dampen any vibration problems.

Uni-Connect (Lite)
We also offer a supplementary range of Uni-Connector sleeves with extended lengths up to 200mm. Uni-Connector Lite offers increased flexibility and has ‘Supa-Lite’ inner flanges supplied as standard.

Features

•Dust tight connection
•FDA compliant silicone
•Excellent GMP design
•Durable and easy-clean
•No tools required
•Hygienic stainless steel support rings
•Fast and reliable assembly

Technical Specifications


Dust Cap Material of Construction: FDA compliant silicone (FDA CFR 177.2600)
Support Ring Material of Construction: 316L stainless steel

Uni-Connect Sizes:

Diameter

Length

2"

40 mm

4"

40 mm

6"

50 mm

8

50 mm

10"

60 mm

12"

70 mm

Uni-Connect Lite Sizes:

Diameter

Length A

Length B

4"

70 mm

150 mm

6"

100 mm

200 mm

8"

70 mm

200 mm

10"

100 mm




Typical Applications

•Dust free transfer from IBC to IBC
•Milling into an IBC
•Vacuum conveying into an IBC
•Used on underside of IBC outlet valves during transportation to contain powders

Gallery





Download Brochure:

pdf-logoSilicone Connectors (Uni-Connect)

The Hanningfield Silicone Connecting Sleeves
